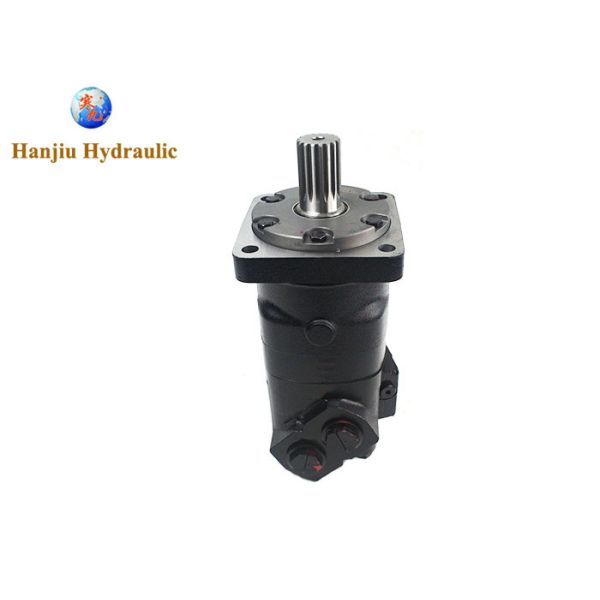

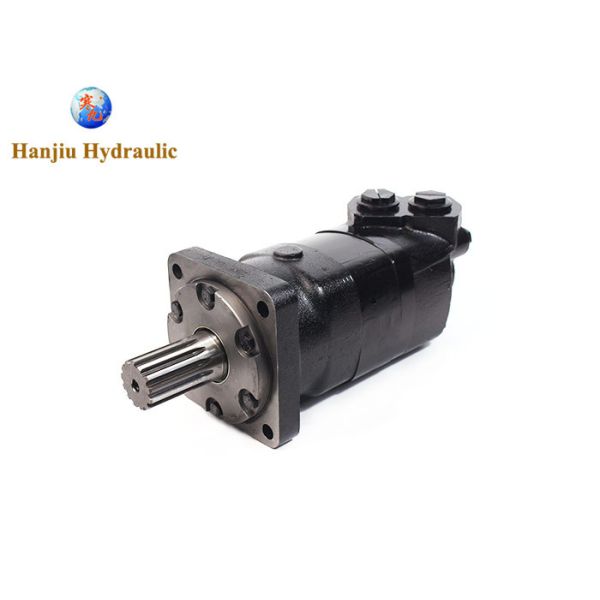

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig

Brand Name : HANJIU

Model Number : BMK6

Certification : ISO

Place of Origin : China

MOQ : 20 Pieces

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,Payple

Supply Ability : 300000 pieces per year

Delivery Time : 10 - 15 work days

Packaging Details : 1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP

Type : Hydraulic heavy Motor

Model No. : BMK6-400

Max.torque(N.m) : cont.1160N.m/int.1625N.m

Max.speed(rpm) : cont.382rpm/int.570rpm

Max pressure drop : cont.20Mpa/int.30Mpa

material : cast iron

Contact Now

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig


Model number: BMK6-400-CC-FE-SF5-B
Replace Char-lynn motor 6000 Series,6K-390
Displacement: 400CC

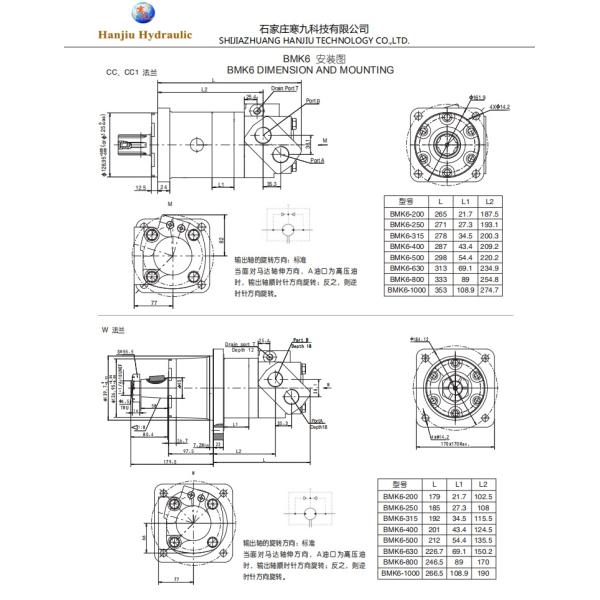

Flange: 4-Φ14.2 Wheel-flange Φ184.12,Pilot 139.7

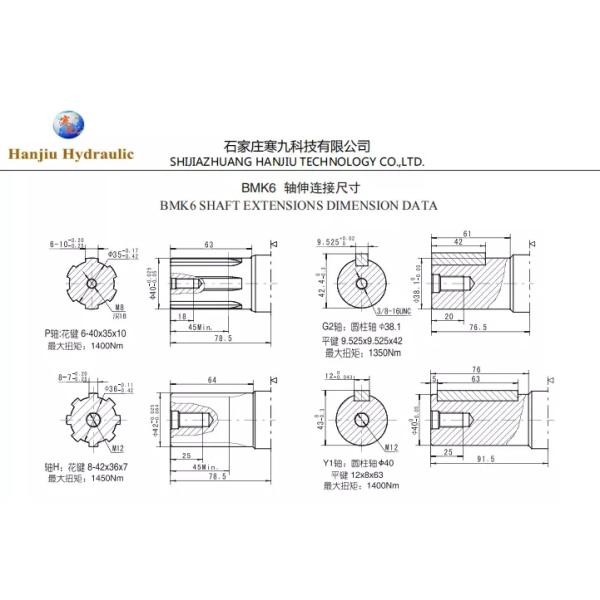

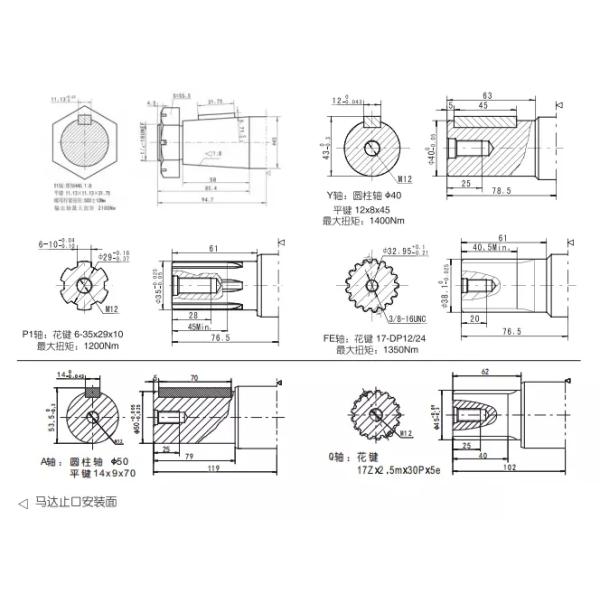

Shaft: ShaftΦ38.1,splined tooth17-DP12/24
Port:1-5/16-12UNF
Drain port: 7/16-20 UNF
Paint: Black

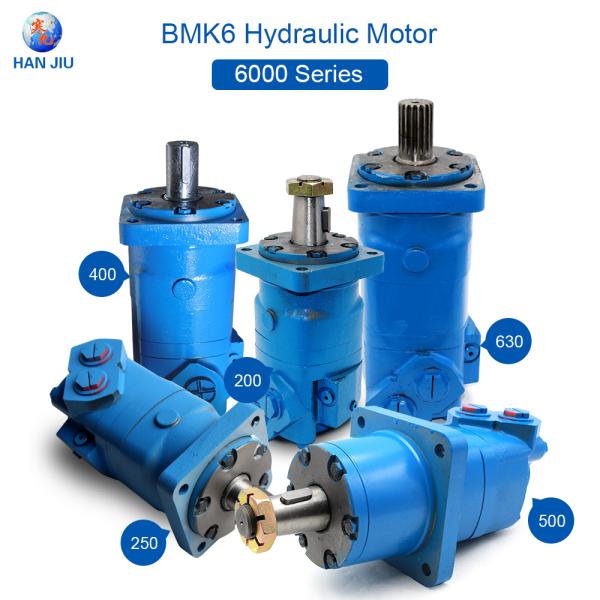

Main Specification

Type


BMK6

200

BMK6

250

BMK6

315

BMK6

400

BMK6

500

BMK6

630

BMK6

800

BMK6

1000
Geometric displacement
(cm3 /rev.)
195.6 246.1 311.6 391.3 490.8 623 802.4 981.6
Main speed(rpm)

cont.

765

 610 480 382 304 240 186 152

int. 865 830 690 570 455 360 280 230
Max torque N.M

cont.

 565 710 920 1160 1445 1480 1580 1675

int. 840 1080 1325 1625 1880 1890 1880 1860
Max pressure drop (Mpa) cont. 20 20 20 20 20 17.5 14 14

int. 30 30 30 30 27.5 22.5 15.5 14
Weight (kg)
26.3 26.8 27.3 28 28.8 29.6 30.5 32



hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig


hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig


hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig


hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig



Hanjiu Company, as a reputable orbital motor supplier, has established a strong foothold in the competitive market through its extensive production experience, professional R&D team, and robust production capabilities. Additionally, its flexible pricing strategies, customer-friendly price advantages, and consistent quality assurance have made it a trusted choice for many clients.

Choose Hanjiu, choose peace of mind and affordability. We will work with you to create a bright future with our professional technology, high-quality products, and attentive service.
